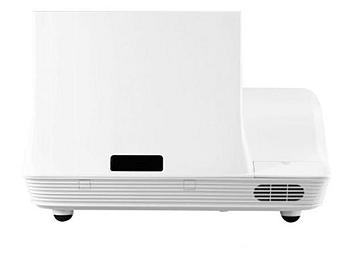

ویدئو پروژکتور پاناسونیکPT-CW331R
DLP™ chip Panel size 16.5 mm (0.65 in) diagonal
(16:10 aspect ratio)
Display method DLP™ chip x 1, DLP™ projection system
Pixels 1,024,000 (1,280 x 800) pixels
Lamp 280 W UHM lamp
(The lamp replacement cycle is 4,000 hours)
Color reproducibility Full color (16,777,216 colors)
Brightness 3,100 lm
Center-to-corner uniformity 80 %
Contrast ratio 8,000:1 (full on/off) (During RGB signal input, lamp power: Normal)
Resolution 1,280 x 800 pixels
(Input signals that exceed this resolution
will be converted to 1,280 x 800 pixels.)
Lens Fixed (0.35:1 throw ratio),
manual focus F = 2.6, f = -5.27 mm
Screen size (diagonal) 1.78-2.54 m (70-100 in)
(16:10 aspect ratio)
Scanning frequency
HDMI (Horizontal) 15-100 kHz; (Vertical) 24-120 Hz; (Dot clock) 25-162 MHz
RGB (analog) (Horizontal) 15-100 kHz; (Vertical) 24-120 Hz; (Dot clock) 162 MHz or lower
YPBPR (YCBCR) fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p] fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
Video / S-Video (fH) 15.75/15.63 kHz (fV) 50/60 Hz [NTSC/NTSC4.43/PAL/PAL60/PAL-N/PAL-M/SECAM]
Terminals
HDMI IN HDMI 19-pin x 1(Deep color, compatible with HDCP),
audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
COMPUTER IN 1 D-sub HD 15-pin (female) x 1 [RGB/YPB(CB)/PR(CR) x 1]
COMPUTER IN 2 D-sub HD 15-pin (female) x 1 [RGB/YPB(CB)/PR(CR) x 1]
MONITOR OUT D-sub HD 15-pin (female) x 1 (The signal selected from computer input 1/2 is output.)
VIDEO IN Pin jack x 1
S-VIDEO IN Mini DIN 4-pin x 1
COMPUTER 1 AUDIO IN M3 x 1 (L-R x 1)
COMPUTER 2 AUDIO IN M3 x 1 (L-R x 1)
VIDEO AUDIO IN Pin jack x 2 (L x 1, R x 1)
S-VIDEO AUDIO IN Pin jack x 2 (L x 1, R x 1)
AUDIO OUT M3 x 1 (L-R x 1) (variable)
SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
LAN RJ-45 x 1 (for network connection, 100BASE-TX/10BASE-T,
compliant with PJLink™ (class 1))
Mini USB 1 for servicemen (for interactive function)
Built-in speaker 7cm x 3cm oval shape x 1, output power 10 W (monaural)
Keystone correction range Vertical: ±15°
Installation Ceiling/floor, front/rear (Menu setting)
Cabinet materials Molded plastic
Power supply 100-240 V AC, 50/60 Hz
Power consumption 340 W
(0.5 W when
STANDBY MODE set to
ECO,*1 6.0 W when
STANDBY MODE set to
NORMAL.)
Power cord length 3.0 m (9'10")
Dimensions (W x H x D) 357 x 250 x 367 mm (14-1/16 x 9-27/32 x 14-29/64 in)
(with legs at shortest position)
Weight Approximately
7.8 kg (17.2 lbs)
Operation Noise 37 dB
(Lamp power: Normal);
33 dB (Lamp power: Eco)
Operating temperature 5°C-40°C [41°F-104°F] (Less than 762 m [2,500 ft] above sea level);
5°C-35°C [41°F-95°F] (between 762 and 1,524 m [2,500 ft and 5,000 ft] above sea level);
5°C-30°C [41°F-86°F] (between 1,524 and 3,048 m [5,000 ft and 10,000 ft] above sea level)
Operating humidity 20 %-80 % (no condensation)
