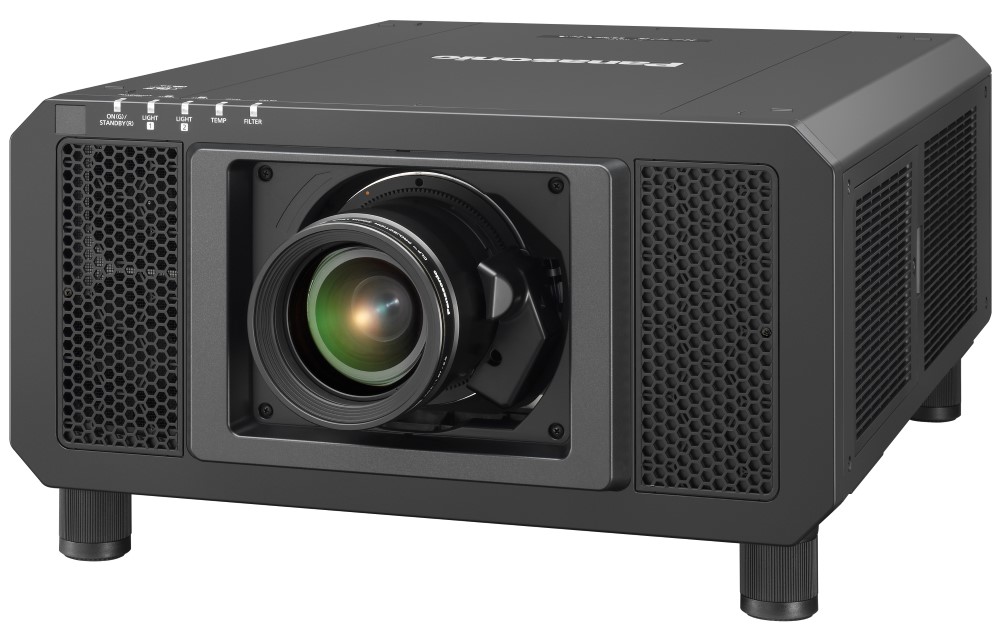

ویدئو پروژکتور پاناسونیک PT-RZ12K

Panel Type                                   0.96" DLP x 3
Lamp                                           N.A. (Laser diodes light source)
Brightness                                    12,000 lumens
Contrast (Full on / Full off)         20000:1
Resolution (Native / maximum)  WUXGA
Video Compatibility                    -
Screen Size                                  50" - 600"
Lens Shift                                    Vertical +-55%(+-44% with the ET-D75LE6, +73%-+78% with the ET-D75LE90)br/>Horizontal +-20%(+-15% with the ET-D75LE6, -+6% with the ET-D75LE90)
Keystone Correction Range        Vertical ±40°, horizontal ±15%
Weight                                         44kg
Dimensions (W x H x D)             578 x 323.5 x 740 mm
Power Consumption                    1200W
Terminals                                     SDI IN1 (BNC x 1)
SDI IN2 (BNC x 1)
HDMI IN (HDMI 19-pin x 1)
DVI-D IN (DVI-D 24-pin x 1)
RGB 1 IN (RGB x 1)
RGB 2 IN (D-sub HD 15-pin female x 1)
3D Sync 1 IN/OUT (BNC x 1)
SD Sync 2 OUT (BNC x 1)
SERIAL IN (D-sub 9-pin female) x 1
SERIAL OUT (D-sub 9-pin male x 1)
REMOTE 1 IN (M3 x 1)
REMOTE 1 OUT (M3 x 1)
REMOTE 2 IN (D-sub 9-pin female x 1)
DIGITAL LINK/LAN (RJ-45 x 1)
Replacement Lamp                      N.A.
Optional Accessories                   ET-PKD520H (High ceiling mount bracket)
ET-PKD520S (Low ceiling mount bracket)
ET-PKD520B (Attachment for ceiling mount bracket)
ET-EMF330 (Filter unit)
ET-SFR330 (Smoke cut filter)
ET-PFD510 (frame)
ET-UK20 (Geometry Manager Pro Upgrade Unit)
ET-CUK10 (Auto Screen Adjustment Upgrade Unit)
ET-YFB100 (Interface unit)
ET-YFB200 (Digtial Link switcher)
Optional Lens                              Optional Lens         -
                  Zoom lens                  ET-D75LE6 (0.9-1.1:1)
ET-D75LE10(1.3-1.7:1)
ET-D75LE20( 1.7-2.4:1)
ET-D75LE30 (2.4-4.7:1)
ET-D75LE40 (4.6-7.4:1)
ET-D75LE8 (7.3-13.8:1))
                  Fixed focus lens         ET-D75LE50 (0.7:1)
ET-D75LE90 ( 0.36:1)
