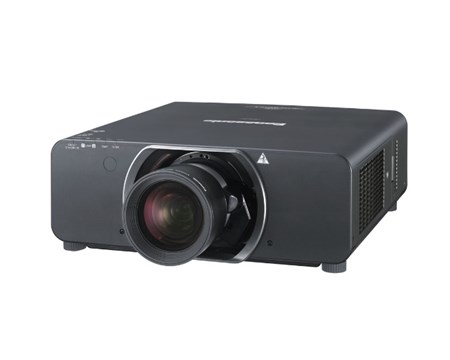

ویدئو پروژکتور پاناسونیک PT-DS12K
Panel Type 0.95" DLP chip x 3
Lamp 380W UHMTM x2
Brightness 12,000 lumens
Lens Optional
Contrast (Full on / Full off) 10,000:1
Resolution (Native / maximum) SXGA+ (1400 x 1050)
H-Sync/V-Sync Range 15-100 kHz / 24-120 Hz
Video Compatibility --
Screen Size 70" - 1000" (70" -600" with ET-D75LE8)
Lens Shift Vertical ±50% (When using ET-D75LE6: ±40%) , horizontal ±00% (When using ET-D75LE6: ±20%)
Keystone Correction Range --
Weight Approx 24kg
Dimensions (W x H x D) 530 x 200 x 548.5 mm
Power Consumption 950W
Terminals SDI 1&2 (BNC x 1)
3D SYNC IN/OUT (BNCx 1)；3D SYNC OUT (BNC x 1)
DVI-D (24-pin x 1, HDCP-compliant)
HDMI (19 pin x 1)
RGB1 (BNC x 5)
RGB2 (D-sub HD 15-pin x 1)
Video (BNC x 1 (in)
Serial (D-sub 9-pin x 1 (in, D-sub 9-pin x 1 (out))
Remote
LAN
Replacement Lamp ET-LAD310AW (2 units)
ET-LAD310A
ET-LAD320P (Portrait mode)
ET-LAD320PW (Portrait mode, 2 units)
Optional Accessories ET-D75MC1 (Lens motor cover)
ET-ACF310(ACF unit)
ET-SFD310 (Smoke cut filter)
ET-PAD310 (Attachment plate)
ET-PFD310 (Frame)
ET-PKD310S (Low ceiling mount bracket)
ET-PKD310H (High ceiling mount bracket)
Optional Lens Zoom lens ET-D75LE8 (Zoom lens, 7.9-15.0:1)
ET-D75LE40 (Zoom lens, 5.0-8.0:1)
ET-D75LE30 (Zoom lens, 2.6-5.1:1)
ET-D75LE20(Zoom lens, 1.8-2.6:1)
ET-D75LE10(Zoom lens, 1.4-1.8:1)
ET-D75LE6 (Zoom lens, 1.0-1.2:1)
Fixed focus lens ET-D75LE90 (0.39:1)
ET-D75LE50 (0.8:1)
