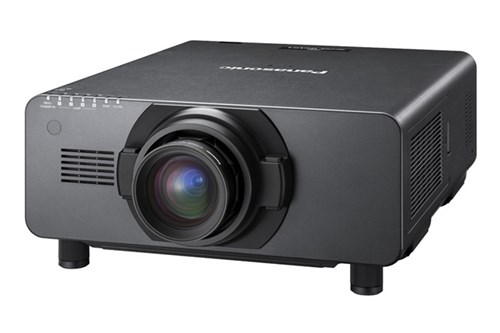

ویدئو پروژکتور پاناسونیک PT-DZ21K
Panel Type 0.96" DLPTM chip x 3
Lamp 465W UHM x4
Brightness 20,000 lumens
Lens OPTIONAL
Contrast (Full on / Full off) 10,000:1
Resolution (Native / maximum) WUXGA(1920 x 1200)
H-Sync/V-Sync Range 15-100 kHz / 24-120 Hz
Video Compatibility --
Screen Size 70" - 600" (70" -300" with ET-D75LE5)
Lens Shift Vertical ±55%, horizontal ±20%(Vertical 44% and Horizontal 15% with the ET-D75LE6)
Keystone Correction Range Vertical ±40° ( ±34° with the ET-D75LE1, ±19° with the ET-D75LE5)
Weight Approx 43 kg
Dimensions (W x H x D) 620 x 291 x 800 mm
Power Consumption 2300W
Terminals LAN (RJ-45 x 1)
REMOTE 1 IN (M3 x 1); REMOTE 1 OUT (M3 x 1); REMOTE 2 IN (D-sub 9-pin (female) x 1)
SERIAL IN (D-sub 9-pin (female) x 1) ; SERIAL OUT (D-sub 9-pin (male) x 1)
VIDEO IN (BNC x 1)
RGB1 (BNC x 5); RGB2 (D-sub HD 15-pin x 1)
HDMI (19-pin x 1)
DVI-D (24-pin x 1)
3D SYNC IN/OUT (BNC x 1); 3D SYNC OUT (BNC x 1)
SDI 1 IN (BNC x 1); SDI 2 IN (BNC x 1)
Replacement Lamp ET-LAD510F (4 UNITS)
ET-LAD510
Optional Accessories ET-UK20 (Geometry Manager Pro upgrade kit)
ET-SFR510 (Smoke cut filter)
ET-EMF510 (Replacement filter)
ET-PFD510 (Frame)
ET-PKD510S (Low ceiling mount bracket)
ET-PKD510H (High ceiling mount bracket)
Optional Lens Zoom lens ET-D75LE6 (0.9-1.1:1)
ET-D75LE10(1.3-1.7:1)
ET-D75LE20 (1.7-2.4:1)
ET-D75LE30 (2.4-4.7:1)
ET-D75LE40 (4.6-7.4:1)
ET-D75LE8 (7.3-13.8:1)
Fixed focus lens ET-D75LE90 (0.36:1)
ET-D75LE50 (0.7:1)
