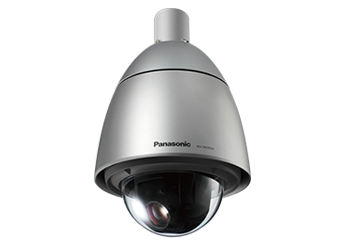

Image sensor 1/3 MOS
Supported Video Codec H.264 / MPEG-4 / JPEG
Max. Resolution 720p / 1,280 x 960
Max. FPS H.264 30
Super Dynamic / WDR / BLC Super Dynamic
Day/Night Day / Night (ICR)
ABF (Auto Back Focus) / Focus Assist Auto Focus
IR LED -
Min. Illumination Color (lx) 0.5
Min. Illumination B/W (lx) 0.06
Lens f=4.7-84.6mm, F1.6
Angular field of view H: 3.2-55.2 deg. V: 1.9-31.9 deg.
Pan / Pan Range 0 - +350 deg.
Tilt / Tilt Range -30 - +90 deg.
Optical Zoom 18x
with Extra Zoom 36x
Audio 2-Way (No Built-in MIC)
SD memory Card Slot 1
External I/O 3/1
Vandal Resistant IEC62262, IK10
Water and Dust Resistance IP66
Rain Wash Coating Yes
Smart Coding -
Temperature (degree, Celsius) MAX 50
MIN -40
Power Source PoE+, 24V AC
