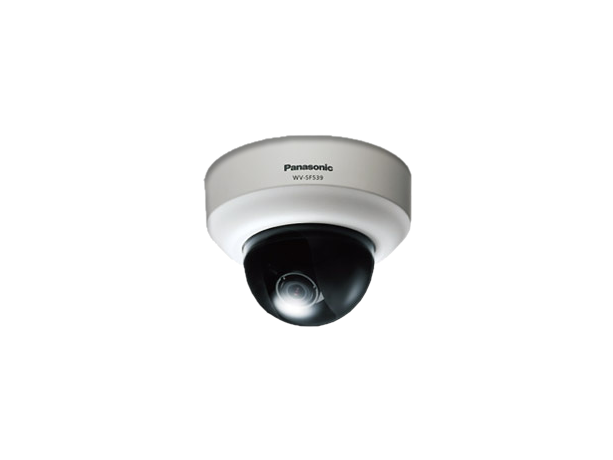

دوربین مداربسته پاناسونیک WV-SF539
• Super high resolution at Full HD/1,920 x 1,080 created by 3.1Megapixel high sensitivity MOS Sensor.
• 1080p Full HD images up to 30 fps and 360p image up to 30fps simultaneously.
• Combining enhanced “UniPhier®”, Panasonic’s proprietary System LSI platform and 2 areas VIQS(Variable Image Quality on Specified area) function can decrease maximum 50%*1 network bandwidth.
• Cropping function enables to provide whole image (1,920 x 1,080) and the part image (640 x 360) simultaneously.Up to 4 image capture areas can be specified, and it is also possible to control the sequence.
• Picture in picture function: A cropping image or an alarm imagecan be added to an image and transmitted.
• Multiple H.264 (High profile) streams and JPEG streams ensure simultaneous real time monitoring and high resolution recording by enhanced“UniPhier®”.
• Super Dynamic and ABS (Adaptive Black Stretch) technologies deliver 128x wider dynamic range compared to conventional cameras.
• Face Super Dynamic Range technology ensures clear face image.
• High sensitivity with Day & Night (IR) function:0.5 lx (Color), 0.06 lx (B/W) at F1.3 (WV-SF539)
• High sensitivity with Day & Night (Electrical) function:0.5 lx (Color), 0.3 lx (B/W) at F1.3 (WV-SF538)
• Using Panasonic distinctive LDC (Lens Distortion Compensation) function, naturalimage without distortion can be monitored though using wide angle lens.
• ABF (Auto Back Focus) ensures easy installation.
• ABF ensures stable focus in both color and B/W modes. (WV-SF539)
• Digital Noise Reduction: 3D-DNR ensures noise reduction in various conditions.
• Progressive scan ensures clear images with less motion blur and no tearing even when the subject is moving.
• Superior color reproduction by primary (RGB) color filter.
• Electronic sensitivity enhancement: Auto (Up to 16x) / OFF
• Selectable light control modes: Outdoor scene / Indoor scene (50 Hz) / Indoor scene (60 Hz) /Fixed electronic shutter Outdoor scene: Electronic shutter and ALC lens iris control areautomatically controlled depending on the mode and luminance level. Indoor scene (50 Hz / 60 Hz): Flicker caused by fluorescent lightning will be automatically compensated. Fixed electronic shutter: Up to 1/10,000 fixed electronic shutter can be selectable
