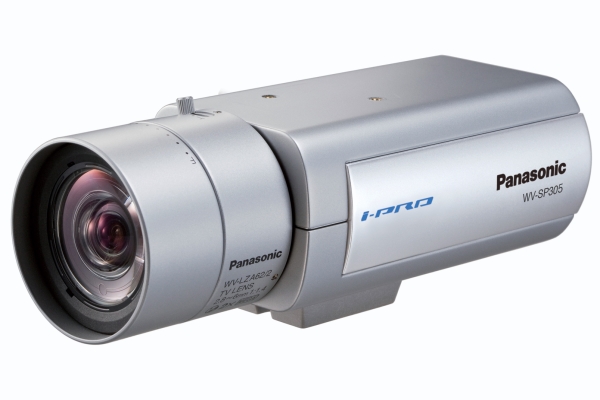

دوربین مداربسته پاناسونیک WV-SP305
mage Sensor 1/3 inch MOS Sensor
Effective Pixels Approx. 1.3 megapixel
Scanning Mode Progressive scan
Scanning Area 4.8 mm (H) x 3.6 mm (V)
Electronic Sensitivity UP OFF / AUTO (Max. 2x (2/30 s), 4x (4/30 s), 6x (6/30 s), 10x (10/30 s), 16x (16/30 s))
Simple Day/Night Mode AUTO / OFF
Digital Noise Reduction High / Low
Video Motion Detection 4 areas, Sensitivity: 15 steps, Detection size: 10 steps
Privacy Zone Up to 2 zones, Gray
Camera Title (OSD) Up to 16 alphanumeric characters
Focus Adjustment Focus Assist
Browser Camera Control Brightness, AUX ON / OFF
GUI Display Mode Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad
screens or 16 split screen (JPEG only). 20 characters camera title available.
Digital Zoom 1x, 2x, 4x controlled by browser GUI
Camera Title Up to 20 alphanumeric characters
Clock Display Time: 12H/24H, Date: 5 formats on the browser, Summer time (Manual)
Alarm Control Reset
One Shot Capture A still picture will be displayed on a newly opened window.
Audio Mic (Line) Input: ON / OFF Volume adjustment: Low / Middle / High,
Audio Output: ON / OFF Volume adjustment: Low / Middle / High
SD Memory Data Download Still or motion Images recorded in the SDHC/SD memory card can be downloaded.
