IP Rating*1 |
Corresponding to IP55 |
|
Display |
Screen Size |
47-inch (1,192 mm) |
|
Aspect Ratio |
16:9 |
|
Panel Type |
IPS/D-LED |
|
Effective Display Area (W x H) |
1,039 x 584 mm (40.9" x 23.0") |
|
Resolution (H x V) |
1,920 x 1,080 pixels |
|
Brightness (Typ) |
1,200 cd/m2 |
|
Contrast Ratio |
1,300:1 |
|
Dynamic Contrast Ratio |
500,000:1 |
|
Viewing Angle (Horizontal/Vertical) |
178°/178° |
|
Connection Terminal |
HDMI In |
HDMI Type A Connector x 1 |
|
DVI-D In/Audio In (L/R) |
DVI-D 24-pin x 1 / M3 Jack x 1 (Shared with PC In) |
|
PC In/Audio In (L/R) |
Mini D-Sub 15-pin x 1 / M3 Jack x 1 (Shared with DVI-D In) |
|
DIGITAL LINK |
RJ45 x 1 (Shared with LAN) |
|
Audio |
Line Out |
Pin Jack (L/R) x 1 set |
|
Control Terminal |
Serial In/Out |
D-Sub 9-pin x 1, RS-232C Compatible |
|
LAN |
RJ45 x 1, 100BASE-TX, Compatible with PJLink™
(Shared with DIGITAL LINK) |
|
Electrical |
Power Requirements |
110-127 V AC/220-240 V AC, 50/60 Hz |
|
Power Consumption |
270 W |
|
Stand-by Condition |
Approx. 0.5 W |
|
Power Off Condition |
Approx. 0.3 W |
|
Outdoor Mode On |
Approx. 41 W |
|
Network Stand-by Mode |
Approx. 16 W |
|
Mechanical |
Dimensions |
1,162 x 706 x 216 mm (45.8" x 27.8" x 8.5") |
|
Weight (Approx.) |
47 kg (103 lbs.) |
|
Pitch for Wall-Hanging |
VESA Compliant 400 x 400 mm (15.8" x 15.8") |
|
Installation Requirement |
Orientation |
Landscape/Portrait |
|
Tilting Angle |
0-20 degrees forward with landscape and portrait setting / 0-20 degrees backward with portrait setting* |
|
Operation Environment |
Temperature |
-20 °C*2 / 0 °C to 50 °C (-4 °F*2 / 32 °F to 122 °F) |
|
Humidity (Non condensation) |
20 % to 80 % |
|
Operating Time*3 |
24 h/day |

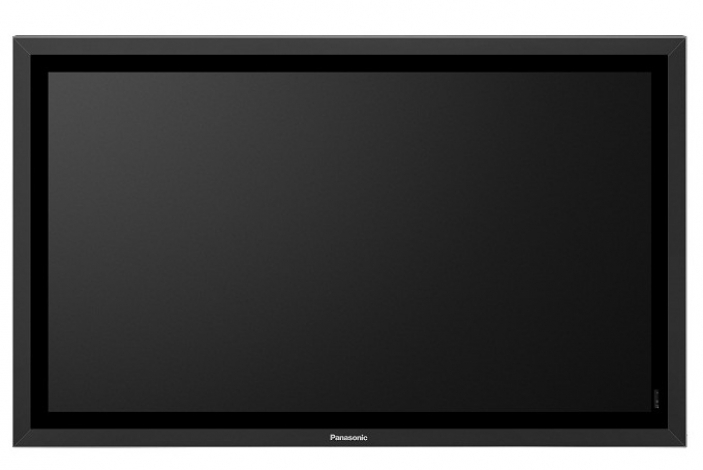

مانیتور صنعتی پاناسونیک TH-47LFX6N
