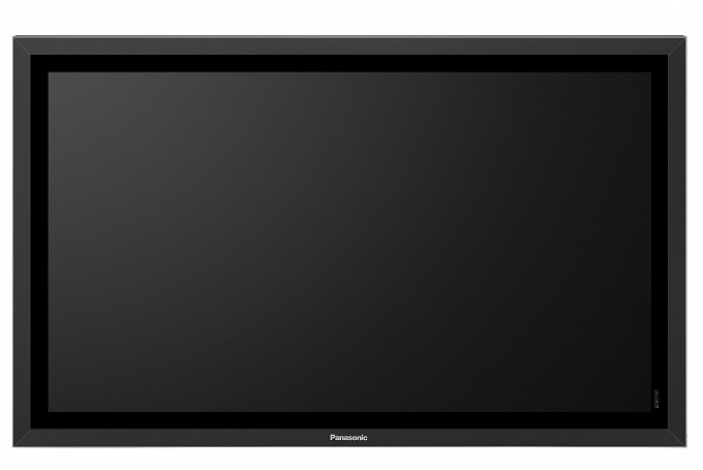

مانیتور صنعتی پاناسونیک TH-47LFX60
|
Display Screen Size: |
47-inch |
|
Panel Type: |
IPS/D-LED |
|
Aspect Ratio: |
16:9 |
|
Effective Display Area (W x H): |
1,039 x 584 mm (40.9" x 23.0") |
|
Number of Pixels (H x V): |
1,920 x 1,080 pixels |
|
Dynamic Contrast Ratio: |
500,000:1 |
|
Contrast Ratio: |
1,300:1 |
|
Connection Terminal: |
HDMI In: HDMI Type A Connector x 1
HDMI Type A Connector x 1
DVI-D In/Audio In (L/R): DVI-D 24-pin x 1 / M3 Jack x 1 (Shared with PC In)
PC In/Audio In (L/R): Mini D-Sub 15-pin x 1 / M3 Jack x 1 (Shared with DVI-D In)
|
|
Control: |
Serial In / Out D-Sub 9-pin x 1, RS-232C Compatible
LAN RJ45 x 1, 100BASE-TX, Compatible with PJLink™ (Shared with DIGITAL LINK)
DIGITAL LINK RJ45 x 1 (Shared with LAN)
|
|
Audio: |
Audio Out Pin Jack (L/R) x 1 set
|
|
Electrical: |
Power Requirements AC 220-240 V, 50 Hz/60 Hz
Power Consumption 370 W 560 W (U model), 540 W (W model) 650 W (U model), 620 W (W model) 560 W (U model), 540 W (W model)
|
|
Dimensions: |
1,162 x 706 x 216 mm (45.8" x 27.8" x 8.5");Weight Approx. 47 kg |
|
Other: |
Designed with Rugged Durability for Professional Use
Portrait Installation Capability
High Reliability Enables Continuous 24/7 Operation
Excellent Outdoor Image Quality
Stunning Panasonic Outdoor Quality Right Down to the Details
Easy Installation & System Expandability
Lighter weight makes installation easier
|
