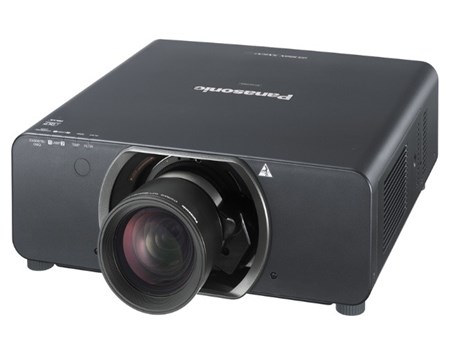

DLP™ chip Panel size 24.1 mm (0.95") diagonal, 4:3 aspect ratio
Display method DLP™ chip x 3 (R, G, B), DLP™ projection system
Pixels 1,470,000 (1,400 x 1,050) x 3, total of 4,410,000 pixels
Lamp 355 W UHM lamp x 2 (dual lamp system)
Brightness*1 10,600 lumens (dual lamp, high mode)
Contrast ratio*1 10,000:1 (full on/full off, in Dynamic iris mode 3)
Resolution 1,400 x 1,050 pixels
(Input signals that exceed this resolution will be converted to 1,400 x 1,050 pixels.)
Lens Optional powered zoom/focus lenses
Screen size 1.78-15.24 m (70-600 inches)*2 (4:3 aspect ratio)
Optical axis shift Vertical: ±50% (±40% with the ET-D75LE6) from center of screen, powered
Horizontal: ±30% (±20% with the ET-D75LE6) from center of screen, powered
Scanning frequency HDMI/DVI-D/RGB Horizontal: 15 -100 kHz, vertical: 24 - 120 Hz,
dot clock: 162 MHz or lower
YPBPR (YCBCR) 525i (480i) : fH 15.75 kHz; fV 60 Hz
625i (576i) : fH 15.63 kHz; fV 50 Hz
525p (480p) : fH 31.50 kHz; fV 60 Hz
625p (576p) : fH 31.25 kHz; fV 50 Hz
750 (720)/60p : fH 45.00 kHz; fV 60 Hz
750 (720)/50p : fH 37.50 kHz; fV 50 Hz
1035/60i : fH 33.75 kHz; fV 60 Hz
1125 (1080)/60i : fH 33.75 kHz; fV 60 Hz
1125 (1080)/50i : fH 28.13 kHz; fV 50 Hz
1080/25p : fH 28.13 kHz; fV 25 Hz
1080/24p : fH 27.00 kHz; fV 24 Hz
1080/24sF : fH 27.00 kHz; fV 48 Hz
1080/30p : fH 33.75 kHz; fV 30 Hz
1080/60p : fH 67.50 kHz; fV 60 Hz
1080/50p : fH 56.25 kHz; fV 50 Hz
S-Video/Video Horizontal: 15.75/15.63 kHz, vertical: 50/60 Hz
(NTSC, NTSC4.43, PAL, PAL60, PAL-N, PAL-M, SECAM)
Terminals SDI IN BNC x 1
SD-SDI signal (YCBCR 4:2:2 10-bit): SMPTE 259M compliant: 480i, 576i
Single-link HD-SDI signal (YPBPR 4:2:2 10-bit): SMPTE 292M compliant: 720/50p, 720/60p, 1035/60i, 1080/50i, 1080/60i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p
HDMI IN HDMI 19-pin x 1
Deep Color, compatible with HDCP, 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p (non-interlaced signals only), VGA (640 x 480)-WUXGA*3 (1,920 x 1,200), dot clock: 25 - 162 MHz
DVI-D IN DVI-D 24-pin x 1
DVI 1.0 compliant, compatible with HDCP, compatible with single link only,
480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p,
VGA (640 x 480)-WUXGA*3 (1,920 x 1,200), compatible with non-interlaced signals only, dot clock: 25 - 162 MHz
RGB 1 IN BNC x 5 (RGB/YPBPR/YCBCR x 1)
RGB 2 IN D-Sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1)
VIDEO IN BNC x 1 (composite video)
S-VIDEO IN Mini DIN 4-pin x 1 (S-Video)
SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
SERIAL OUT D-sub 9-pin (male) x 1 for link control (RS-232C compliant)
REMOTE 1 IN M3 jack x 1 (for wired remote control)
REMOTE 1 OUT M3 jack x 1 (for link control)
REMOTE 2 IN D-sub 9-pin (female) x 1 (for external control, contact control)
LAN RJ-45 x 1 (for network connection, 10Base-T/100Base-TX, compliant with PJLink™)
Keystone correction range Vertical: ±40°
(±22° with the ET-D75LE50/D75LE5*4, ±28° with the ET-D75LE6)*5,
horizontal: ±15° (±10° with the ET-D75LE6)*5
Installation Ceiling/floor, front/rear
Power cord length 3.0 m (9 ft 10 in)
Power supply PT-DS8500
(North America) 120 V AC, 9.0 A, 60 Hz
PT-DS100X
(Europe and Asia) 220-240 V AC, 4.8 A, 50/60 Hz
Power consumption PT-DS8500
(North America) 920 W (970 VA)
(0.2 W with standby mode set to ECO*6. 6 W with standby mode set to NORMAL. Both with fan stopped.)
PT-DS100X
(Europe and Asia) 900 W (950 VA at 240 V)
(0.3 W with standby mode set to ECO*6. 8 W with standby mode set to NORMAL. Both with fan stopped.)
Dimensions (W x H x D) 530 x 200 x 548.5 mm (20-7/8 x 7-7/8 x 21-19/32 inches)
(with legs at shortest position, optional lens not included)
Weight Approximately 24 kg (52.9 lb) without lens
Operating temperature 0–45°C (32–113°F)
Operating humidity 10%-80% (no condensation)
