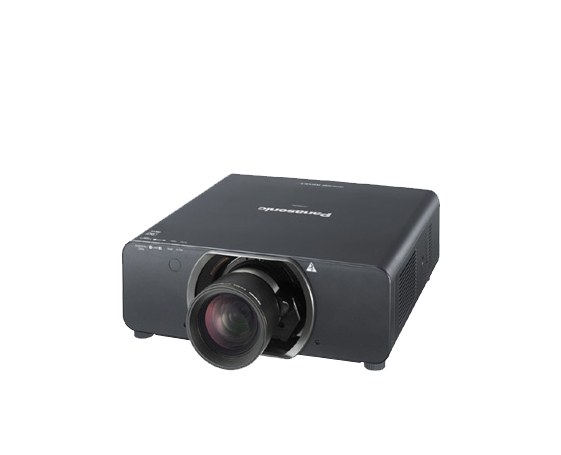

ویدئو پروژکتور پاناسونیک PT-DZ110X
General DLP™ chip Panel size 24.4 mm (0.96") diagonal, 16:10 aspect ratio
Display method DLP™ chip x 3 (R, G, B), DLP™ projection system
Pixels 2,304,000 (1,920 x 1,200) x 3, total of 6,912,000 pixels
Lamp 355 W UHM lamp x 2 (dual lamp system)
Brightness*1 10,600 lumens (dual lamp, high mode)
Contrast ratio*1 10,000:1 (full on/full off, in Dynamic iris mode 3)
Resolution 1,920 x 1,200 pixels
Lens Optional powered zoom/focus lenses
Screen size 1.78-15.24 m (70-600 inches)*2 (16:10 aspect ratio)
Optical axis shift Vertical: ±55% (±44% with the ET-D75LE6) from center of screen, powered Horizontal: ±20% (±15% with the ET-D75LE6) from center of screen, powered
Scanning frequency HDMI/DVI-D/RGB Horizontal: 15 -100 kHz, vertical: 24 - 120 Hz, dot clock: 162 MHz or lower
YPBPR (YCBCR) 525i (480i) : fH 15.75 kHz; fV 60 Hz 625i (576i) : fH 15.63 kHz; fV 50 Hz 525p (480p) : fH 31.50 kHz; fV 60 Hz 625p (576p) : fH 31.25 kHz; fV 50 Hz 750 (720)/60p : fH 45.00 kHz; fV 60 Hz 750 (720)/50p : fH 37.50 kHz; fV 50 Hz 1035/60i : fH 33.75 kHz; fV 60 Hz 1125 (1080)/60i : fH 33.75 kHz; fV 60 Hz 1125 (1080)/50i : fH 28.13 kHz; fV 50 Hz 1080/25p : fH 28.13 kHz; fV 25 Hz 1080/24p : fH 27.00 kHz; fV 24 Hz 1080/24sF : fH 27.00 kHz; fV 48 Hz 1080/30p : fH 33.75 kHz; fV 30 Hz 1080/60p : fH 67.50 kHz; fV 60 Hz 1080/50p : fH 56.25 kHz; fV 50 Hz
S-Video/Video Horizontal: 15.75/15.63 kHz, vertical: 50/60 Hz (NTSC, NTSC4.43, PAL, PAL60, PAL-N, PAL-M, SECAM)
Terminals SDI IN BNC x 1 SD-SDI signal (YCBCR 4:2:2 10-bit): SMPTE 259M compliant: 480i, 576i Single-link HD-SDI signal (YPBPR 4:2:2 10-bit): SMPTE 292M compliant: 720/50p, 720/60p, 1035/60i, 1080/50i, 1080/60i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p
HDMI IN HDMI 19-pin x 1 Deep Color, compatible with HDCP, 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p (non-interlaced signals only), VGA (640 x 480)-WUXGA*3 (1,920 x 1,200), dot clock: 25 -162 MHz
DVI-D IN DVI-D 24-pin x 1 DVI 1.0 compliant, compatible with HDCP, compatible with single link only, 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p, VGA (640 x 480)-WUXGA*3 (1,920 x 1,200), compatible with non-interlaced signals only, dot clock: 25 - 162 MHz
RGB 1 IN BNC x 5 (RGB/YPBPR/YCBCR x 1)
RGB 2 IN D-Sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1)
VIDEO IN BNC x 1 (composite video)
S-VIDEO IN Mini DIN 4-pin x 1 (S-Video)
SERIAL IN D-sub 9-pin (female) x 1 (for external control, RS-232C compliant)
SERIAL OUT D-sub 9-pin (male) x 1 (for link control, RS-232C compliant)
REMOTE 1 IN M3 jack x 1 (for wired remote control)
REMOTE 1 OUT M3 jack x 1 (for link control)
REMOTE 2 IN D-sub 9-pin (female) x 1 (for external control, contact control)
LAN RJ-45 x 1 (for network connection, 10Base-T/100Base-TX, compliant with PJLink™)
Keystone correction range Vertical: ±40° (±22° with the ET-D75LE50/D75LE5*4, ±28° with the ET-D75LE6)*5, horizontal: ±15° (±10° with the ET-D75LE6)*5
Installation Ceiling/floor, front/rear
Power cord length 3.0 m (9 ft 10 in)
Power supply PT-DZ8700 (North America) 120 V AC, 9.5 A, 60 Hz
PT-DZ110X (Europe and Asia) 220-240 V AC, 5.0 A, 50/60 Hz
Power consumption PT-DZ8700 (North America) 970 W (1,000 VA) (0.2 W with standby mode set to ECO*6. 6 W with standby mode set to NORMAL. Both with fan stopped.)
PT-DZ110X (Europe and Asia) 920 W (980 VA at 240 V) (0.3 W with standby mode set to ECO*6. 8 W with standby mode set to NORMAL. Both with fan stopped.)
Dimensions (W x H x D) 530 x 200 x 548.5 mm (20-7/8 x 7-7/8 x 21-19/32 inches) (with legs at shortest position, optional lens not included)
Weight Approximately 24 kg (52.9 lb) without lens
Operating temperature*7 0°C-45°C (32°F-113°F)
Operating humidity 10%-80% (no condensation)
Note: *1: Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards. *2: 1.78-7.62 m (70-300 inches) with the ET-D75LE50/D75LE5*4. *3: WUXGA resolution is supported only when the signals are compliant with VESA CV T-RB (Coordinated Video Timing-Reduced Blanking). *4: The optional lenses ET-D75LE4/D75LE5 were discontinued. *5: When using only the KEYSTONE correction. When using both the KEYSTONE and ARC corrections of the Geometric Adjustment function: vertical ±5°, horizontal ±5° (vertical ±10° and horizontal ±15° with the ET-D75LE40/D75LE4*4/D75LE8). *6: With the standby mode set to ECO. When the standby mode is set to ECO, network functions such as power on over the LAN network will not operate, and the serial output terminal cannot be used. Also, only cer tain commands can be received for external control using the serial terminal. *7: The operating temperature range is 0°C (32°F) to 40°C (104°F) when used in High-Altitude mode (1,400 m (4,593 ft) to 2,700 m (8,858 ft)).
